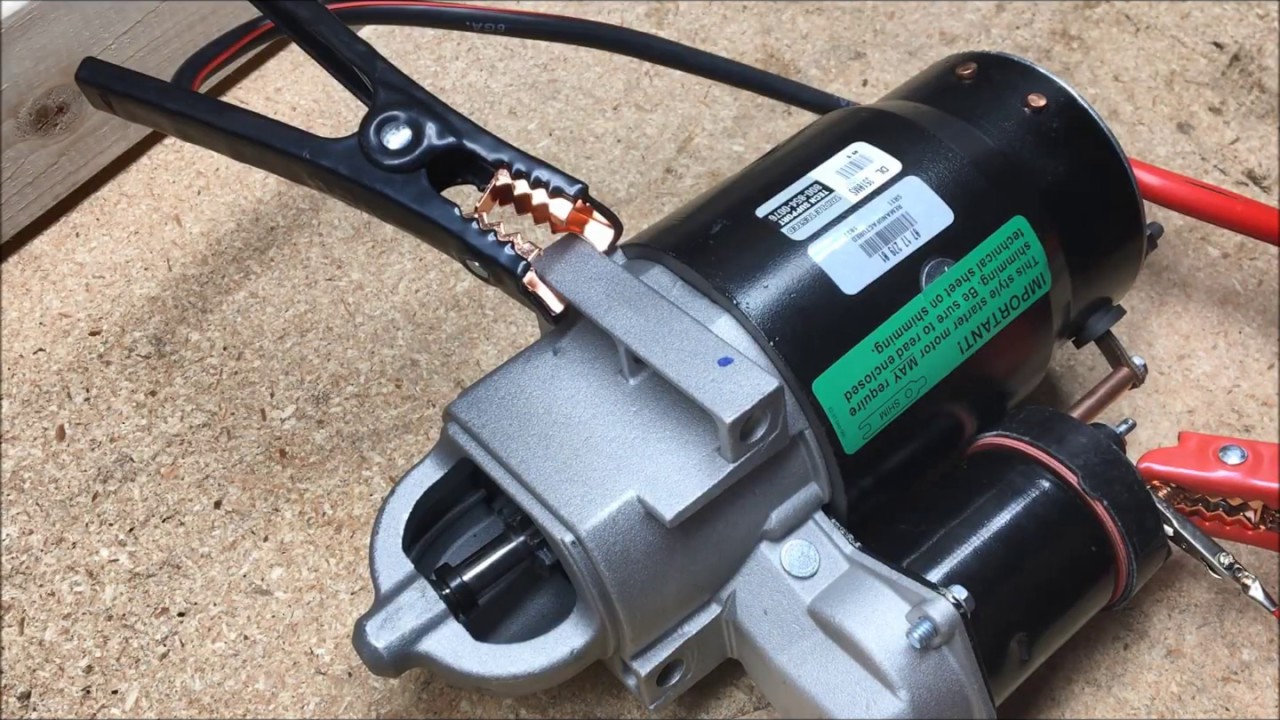

Welcome to our guide on how to test a starter motor. The starter motor is an essential component of your car's engine, and it's crucial to ensure that it's in good working condition. If you're experiencing problems with your car starting up, it could be due to a faulty starter motor. In this article, we'll teach you how to test your starter motor to ensure that it's functioning correctly.

👉 Learn More 👈
Table
  1. Tools Needed
  2. How To Test A Starter Motor
    1. Step 1: Disconnect Your Car Battery
    2. Step 2: Locate Your Starter Motor
    3. Step 3: Test The Starter Motor's Voltage
    4. Step 4: Test The Starter Motor's Continuity
    5. Step 5: Check The Starter Motor’s Solenoid
  3. Conclusion

Tools Needed

Before we get started, there are a few tools that you’ll need:

  • Multimeter: This will be used to measure the voltage and continuity of the starter motor.
  • Wrench: You'll need this to disconnect the starter motor from your vehicle's battery.

How To Test A Starter Motor

Here is a step by step guide on how to test a starter motor:

Step 1: Disconnect Your Car Battery

The first step is to disconnect your car battery. This is important to ensure that you do not damage any electrical components of your vehicle while testing the starter motor. Use a wrench to disconnect the negative cable from the battery.

Step 2: Locate Your Starter Motor

Your starter motor is typically located near the engine and connected to the transmission. Depending on your vehicle's make and model, it may be easy or difficult to access. You may need to consult your car's owner manual to locate the starter motor.

👉 Learn More 👈

Step 3: Test The Starter Motor's Voltage

Set your multimeter to the voltage setting and attach the red probe to the positive terminal of the starter motor. Attach the black probe to a ground point on the engine or chassis. Have someone turn the ignition key to the on position, but do not start the engine. Check to see if the multimeter reads between 10-12 volts. If not, it could indicate a faulty starter motor.

How To Drive A Truck
READ

Step 4: Test The Starter Motor's Continuity

Set your multimeter to the continuity setting and attach the red probe to the positive terminal of the starter motor. Attach the black probe to the starter motor housing. If the multimeter does not beep or show a reading of zero, it could indicate a faulty starter motor.

Step 5: Check The Starter Motor’s Solenoid

The starter motor's solenoid is responsible for engaging the motor's pinion gear with the flywheel. If the solenoid is faulty, it could cause problems with the starter motor. To test the solenoid, connect the multimeter to the solenoid's positive and negative terminals. Have someone turn the ignition key to the on position, but do not start the engine. If the multimeter reads between 10-12 volts, it could indicate a faulty solenoid.

Conclusion

Testing your starter motor is essential to ensure that your vehicle is functioning correctly. A faulty starter motor can cause problems with your car starting up, which can be frustrating and expensive to repair. By following the steps outlined in this guide, you'll be able to determine if your starter motor is functioning correctly. If you have any concerns, it's always best to consult a qualified mechanic for help.
