Microwave oven is one of the commonly used kitchen appliances that has been around for decades. It is an electronic device that uses microwaves in the electromagnetic spectrum to heat up food. One of the most important components of a microwave oven is the magnetron, which generates the microwaves. So, it is necessary to check the magnetron periodically to ensure that it is functioning properly. In this article, we will discuss how to test a microwave magnetron.
What is a microwave magnetron?
A magnetron is a high-powered vacuum tube that generates microwaves in the oven. When the electrons in the tube are subjected to a high voltage, they move in a circular path, creating an oscillating electric field. This oscillating electric field generates microwaves, which are then emitted through an antenna.
Why test a microwave magnetron?
A malfunctioning magnetron can cause the microwave oven to stop heating or not heat properly. Testing the magnetron can help you identify the problem and find a solution. If the magnetron is not working, it needs to be replaced. Testing the magnetron is a relatively simple process that can be done with the help of a multimeter.
How to test a microwave magnetron?
Before you start testing the magnetron, make sure the oven is unplugged and discharge the high voltage capacitor. Follow these steps to test the magnetron:
Step 1: Access the magnetron
Locate the magnetron, which is usually behind the control panel of the microwave oven. You may need to remove the cover or the control panel to access the magnetron.

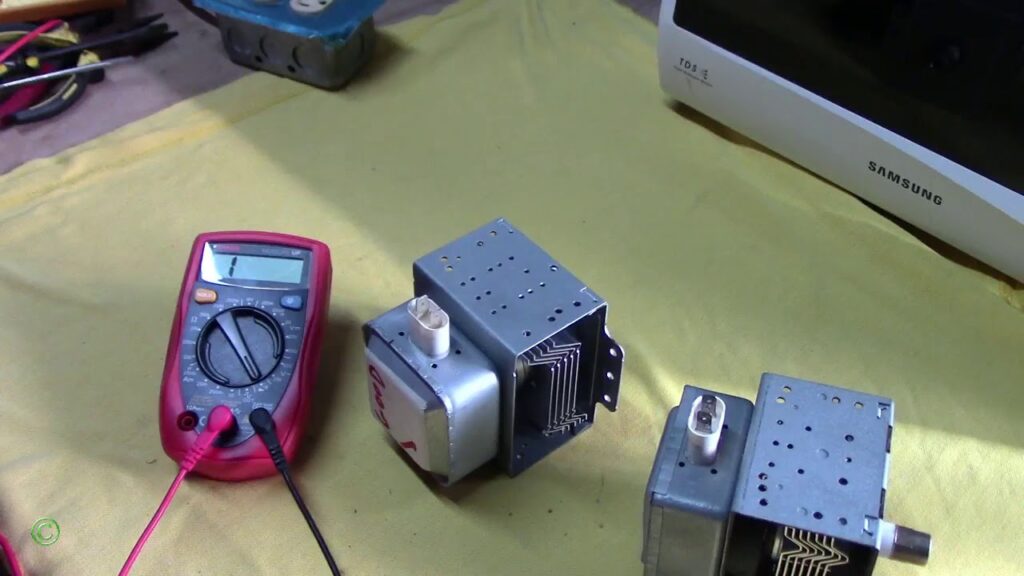

Step 2: Check the resistance
Set your multimeter to the resistance mode and touch the probes to the terminals of the magnetron. The resistance should be between 0.2 and 2 ohms. If the resistance is outside this range, the magnetron is defective and needs to be replaced.
Step 3: Check for continuity
Set your multimeter to the continuity mode and touch the probes to the terminals of the magnetron. The multimeter should beep if there is continuity. If it doesn't beep, the magnetron is defective and needs to be replaced.
Step 4: Check for a short circuit
Set your multimeter to the continuity mode and touch one probe to the magnetron housing and the other probe to the terminals. If the multimeter beeps, there is a short circuit and the magnetron is defective.
Conclusion
Testing the magnetron is an essential part of maintaining your microwave oven. By following the steps outlined above, you can identify whether the magnetron is defective or not. If it is, you should replace it to ensure that your microwave oven continues to function properly.
