How To Connect A Plug With 3 Wires

How To Connect A Plug With 3 Wires

As we continue to advance technologically, the importance of electricity in our lives cannot be overstated. One of the most basic skills everyone should have in managing electrical devices is the ability to connect a 3-wire plug to an electrical outlet.

👉 Learn More 👈

Table
  1. Tools and Materials Required
  2. The Three Wires
    1. Connecting the Wires
  3. Testing the Connection
  4. Conclusion

Tools and Materials Required

Before we delve into the process, let us first list the things that we need to ensure the job is done correctly.

  • A 3-wire plug
  • A screwdriver
  • A wire cutter/stripper

The Three Wires

A 3-wire plug comprises three wires, which are commonly colored green, white, and black. The green wire is the earth wire, while the white wire is the neutral one. The black wire is the live wire, carrying electrical current from the outlet.

Connecting the Wires

The first step in connecting a 3-wire plug is stripping the wires with the wire stripper to expose the internal copper wire. Each wire should be stripped to about 10mm in length.

👉 Learn More 👈

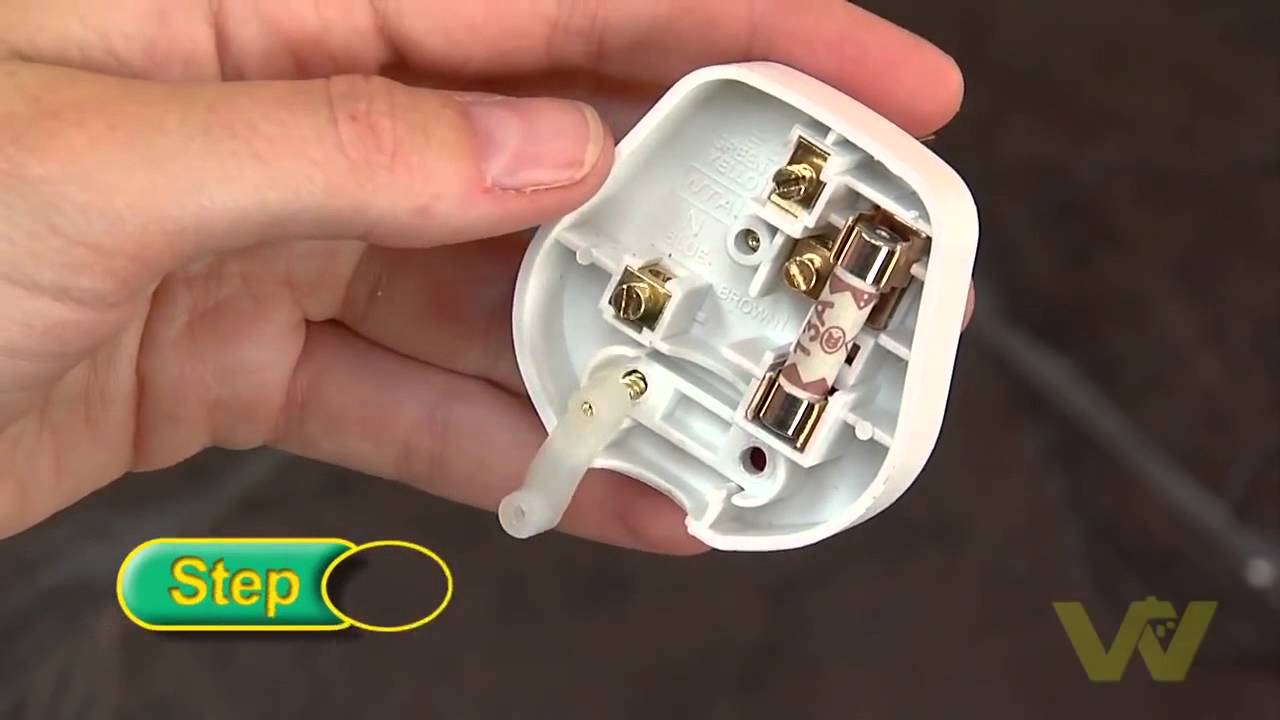

The stripped wires should then be inserted into the 3-pin plug with their respective colors. The earth wire (green) should be inserted into the earth hole, the neutral wire (white) should be placed into the neutral hole, while the live wire (black) should be inserted into the live hole.

Using the screwdriver, the three terminal screws should then be screwed tightly to ensure a good connection that cannot be easily loosened.

Testing the Connection

After connecting the wires, plug the device into an electrical outlet and switch it on. If the device powers on, then the connection is successful, and the electrical device can be used.

How To Wire A Db Board
READ

If, for some reason, the device refuses to work, unplug it and disassemble the plug. Check to see if the wiring is correct and the terminal screws are tight enough. Make any necessary adjustments to ensure proper connection before testing the device again.

Conclusion

Being able to connect a 3-wire plug to an electrical outlet is a basic skill that everyone should have. There is no excuse for not being able to connect your electrical appliances safely and accurately. Follow the simple steps outlined in this article, and you will never have any problems connecting a 3-wire plug again.
