Trailers are used for carrying cargo, equipment, or even vehicles. If you have a trailer that needs to be connected to tow vehicle, one essential component that you must have is a trailer plug. A trailer plug is the electrical connector that allows power to flow between the trailer and the tow vehicle. It enables the trailer lights, turn signals, and brake lights to work in sync with the vehicle. Wiring a trailer plug is an essential skill that all trailer owners should know. In this article, we will discuss how to wire a trailer plug step by step.

👉 Learn More 👈
Table
  1. Types of Trailer Plugs
  2. Wiring a Trailer Plug Step by Step
    1. Step 1: Gather Materials
    2. Step 2: Strip the Wires
    3. Step 3: Connect the Wires to the Pins
    4. Step 4: Test the Connections
    5. Step 5: Wrap the Connections
    6. Step 6: Connect the Plug to the Trailer
  3. Conclusion

Types of Trailer Plugs

Before you start wiring a trailer plug, it's essential to know which type of plug the trailer uses. There are several types of trailer plugs, but the most common ones are:

  • 4-pin trailer plug: This plug has four pins and is used for small trailers that do not have brakes or turn signals.
  • 5-pin trailer plug: This plug has five pins and is used for small trailers that have brakes but no turn signals.
  • 6-pin trailer plug: This plug has six pins and is used for small to medium-sized trailers that have both brakes and turn signals.
  • 7-pin trailer plug: This plug has seven pins and is used for large trailers that have both brakes and turn signals.

Make sure to identify which type of plug your trailer has before proceeding with the wiring.

Wiring a Trailer Plug Step by Step

Now that you have identified the type of plug your trailer has let's look at how to wire a trailer plug step by step.

Step 1: Gather Materials

Before you begin wiring, make sure that you have all the necessary tools and materials. You will need:

  • Wire Strippers: Used for stripping the wire coatings
  • Wire cutter: Used for cutting the wires to the required lengths
  • Crimping tool: Used to connect the wires to the plug pins
  • Electrical tape: Used to wrap the wires and protect them from water and dirt
  • A wiring diagram: A guide showing how to connect the wires to the plug pins
  • A trailer plug: The type of plug needed for your trailer
How Much Is Mazda Cx 5 In South Africa
READ

Once you have all the materials, you are ready to start wiring.

Step 2: Strip the Wires

Using the wire strippers, strip the outer coating of the wires about ½ inch. Ensure that the metal wires inside are not damaged or cut during the process.

👉 Learn More 👈

Step 3: Connect the Wires to the Pins

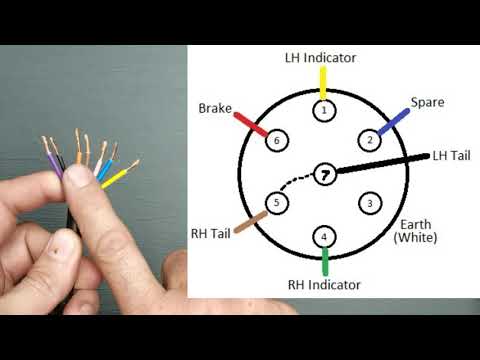

Using the wiring diagram as a guide, connect the wires to the corresponding pins in the plug. Make sure that the connections are secure and that there are no loose wires. The wiring diagram should show which wire goes to which pin. Each pin has a designated function, depending on the type of plug that you have.

Step 4: Test the Connections

Once you have connected all the wires to the pins, use a test light or a multimeter to test the connections. This is to ensure that the plug is wired correctly and all the connections are secure.

Step 5: Wrap the Connections

After testing, wrap the connections with electrical tape to protect them from dirt, water, and other elements. You can also use cable ties to secure the wires and prevent them from moving around too much.

Step 6: Connect the Plug to the Trailer

Finally, connect the plug to the trailer. Ensure that the plug is firmly connected and that there are no loose connections. Plug the trailer into the tow vehicle and test the lights to ensure that everything is working correctly.

Conclusion

Wiring a trailer plug is a simple and essential skill that all trailer owners should know. With the right tools and knowledge, you can easily wire a trailer plug in no time. Remember to always follow the wiring diagram, test the connections before wrapping them, and secure the wires to prevent movement. By doing so, you can ensure that your trailer's lights, brakes, and turn signals are working correctly, and you are towing safely.
